KOTIBHASKAR MATERIAL HANDLING EQUIPMENTS

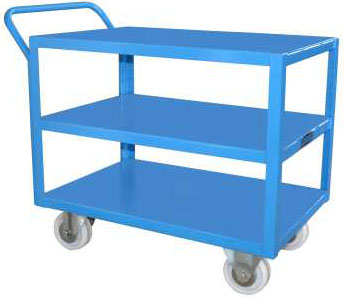

THREE SHELF TROLLEY

CAPACITY : 300 to 750 Kg.



Three Shelf Trolley
Three Shelf Trolley
SIZE (L x W) CAPACITY
600 X 450 mm 300 kg
900 X 600 mm 600 kg
1250 X 750 mm 750 kg



  • Shelf trolley is fabricated from single piece m.s. sheet bended to form ' C ' channel at ends to give good aesthetic look & is ribbed at bottom with angles and channels to increase strength. Top shelf is at 800 mm from ground level.
  • Shelf trolley is fitted with 2 fixed & 2 swivel castors.
  • Shelf trolleys are used to accommodate most industrial, commercial & retail storage requirements.
  • These are widely used on shop floors as mini stores, on assembly lines to cater the material requirement or as a work & assembly tables.
  • We Also Make Custom Built Trolleys As Per Customer's Requirements.
  • Stainless Steel Trolleys Are Available



Three Shelf Trolley
Three Shelf Trolley
Three Shelf Trolley
THREE SHELF TROLLEY WITH SAFTY DOOR WITH LOCK



MODEL SH - 600 x 3 SH - 900 x 3 SH - 1250 x 3
Capacity ( Kg ) 300 600 750
Capacity / Shelf ( Kg ) 100 200 250
Shelf Size ( L x W mm ) 600 X 450 900 X 600 1250 X 750
Handle Height ( mm ) 950 950 950
Bottom Shelf Height ( mm ) 170 225 275
Middle Shelf Height ( mm ) 500 520 540
Top Shelf Height ( mm ) 800 800 800
Overall Size ( L x W x H ) 750 X 450 X 950 1050 X 600 X 950 1400 X 750 X 950
Castor / Wheels ( D x W mm ) 100 X 32 150 X 50 200 X 50
