HYDRAULIC SCISSOR LIFT

CAPACITY : 500 & 1000 kg.



Hydraulic Scissor Lift

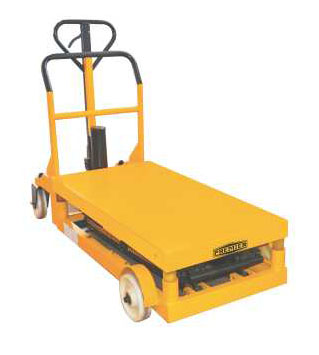

DOUBLE SCISSOR LIFT MOBILE ON WHEEL
Hydraulic Scissor Lift Diagram




  • Robust Steel welded construction
  • Reliable hydraulic system
  • Ensures a comfortable working heights for user
  • Increases efficiency & reduces fatigue and back pain of operator
  • Fully guided in heavy duty channels with thick heavy arms.
  • All rollers, pivoting points with phosphor bronze / brass bushing for long life.

SCISSOR LIFTS ARE AVAILABLE IN HAND OPERATED, BATTERY OPERATED, ELECTRICALLY AC OPERATED & FLAME PROOF TYPE

WE MANUFACTURE SCISSOR LIFTS AS PER CUSTOMER'S REQUIREMENT.

Hydraulic Scissor Lift Diagram



MODEL TABLE SIZE
L x W (MM)		 LOAD
CAPACITY (KG)		 TABLE HEIGHT
MIN. / MAX. (MM)		 LIFT S
(MM)		 OVERALL SIZE
L1 x W1 (MM)
SC 0512 D 1000 x 500 500 400 1200 800 1500 x 650
SC 0514 D 1250 x 600 500 400 1400 1000 1750 x 750
SC 0517 D 1500 x 700 500 400 1700 1300 2000 x 850
SC 0521 D 2000 x 800 500 400 2100 1700 2500 x 950
SC 1013 D 1000 x 500 1000 500 1300 800 1500 x 650
SC 1015 D 1250 x 600 1000 500 1500 1000 1750 x 750
SC 1018 D 1500 x 700 1000 500 1800 1300 2000 x 850
SC 1022 D 2000 x 800 1000 500 2200 1700 2500 x 950
