LIFTING TRIPOD

CAPACITY : 500 to 2000 kg.

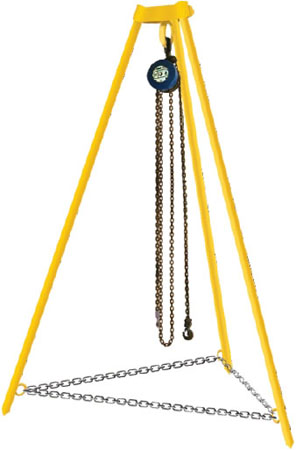

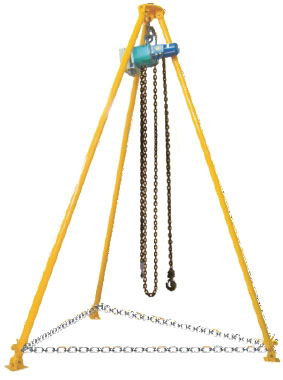

Lifting Tripod
Lifting Tripod Diagram
LIFTING TRIPOD
  • A rigid & sturdy tripod, designed for lifting items from below ground level, such as pumps etc. from man holes.
  • Simple to errect and comes complete with a shackle for easy suspension of a chain pulley block.



MODEL TRI 053021 TRI 103524 TRI 204027
Lifting capacity (kg) 500 1000 2000
Overall height H (mm) 3000 3500 4000
Pitch circle diameter PCD (mm) 2100 2400 2700
