HEAVY DUTY TWIN CASTORS ( HD TWIN SERIES )




HEAVY DUTY TWIN CASTORS ( HD TWIN SERIES )


HEAVY DUTY TWIN CASTORS ( HD TWIN SERIES )

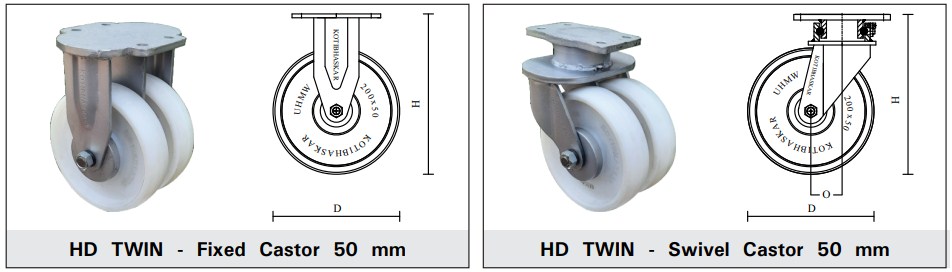

1.
Heavy Duty Twin Fixed Brackets are manufactured from tested m. s. plates, cutting, embossed on press machine for high strength & joined together by welding process.



2.
Heavy Duty Twin Swivel Brackets are manufactured from tested m. s. plates, cutting, embossed on press machine for high strength & joined together by welding process. Base & top are interlocked together with steel balls in machined ball races. These brackets are designed for heavy loads & long service life.



MEDIUM DUTY PRESSED STEEL CASTORS ( MD SERIES )


CASTORS DESIGNED FOR HEAVY LOADS & LOW CASTOR HEIGHT


HEAVY DUTY TWIN CASTORS ( HD TWIN SERIES )

No Castor Size
Wheel D x W mm 		Height
H mm 		Offset
O 		Mounting Plate Load Carrying Capacity Kg
A x B mm a x b mm d UHMW PU-CI CI MS-TR
1 FX - HD TWIN - 100 x 50 165 0 160 x 200 120 x 60 14 500 500 700 700
2 SW - HD TWIN - 100 x 50 165 50 160 x 120 120 x 60 14 500 500 700 700
3 FX - HD TWIN - 125 x 50 190 0 160 x 200 120 x 60 14 600 600 800 800
4 SW - HD TWIN - 125 x 50 190 50 160 x 120 120 x 60 14 600 600 800 800
5 FX - HD TWIN - 150 x 50 215 0 160 x 200 120 x 60 14 800 800 900 900
6 SW - HD TWIN - 150 x 50 215 60 160 x 120 120 x 60 14 800 800 900 900
7 FX - HD TWIN - 200 x 50 265 0 160 x 200 120 x 60 14 900 900 1100 1100
8 SW - HD TWIN - 200 x 50 265 60 160 x 120 120 x 60 14 900 900 1100 1100
9 FX - HD TWIN - 250 x 50 315 0 160 x 200 120 x 60 14 1100 1100 1300 1300
10 SW - HD TWIN - 250 x 50 315 70 160 x 120 120 x 60 14 1100 1100 1300 1300
11 FX - HD TWIN - 300 x 50 365 0 160 x 200 120 x 60 14 1300 1300 1500 1500
12 SW - HD TWIN - 300 x 50 365 70 160 x 120 120 x 60 14 1300 1300 1500 1500


1.
Twin castors have the advantages of greater load carring capacity for the same castor height.



2.
The use of twin castor is advantageous than use of single wheel with wider trade width because of the differential movement of two wheels, the scrubbing action during turning is avoided and that increases wheel life by about 30 %.
