MEDIUM DUTY PRESSED STEEL CASTORS ( MD SERIES )

















Medium Duty Fixed Brackets are manufactured from tested m. s. plates, cutting & forming on hydraulic press with emboss for high strength.

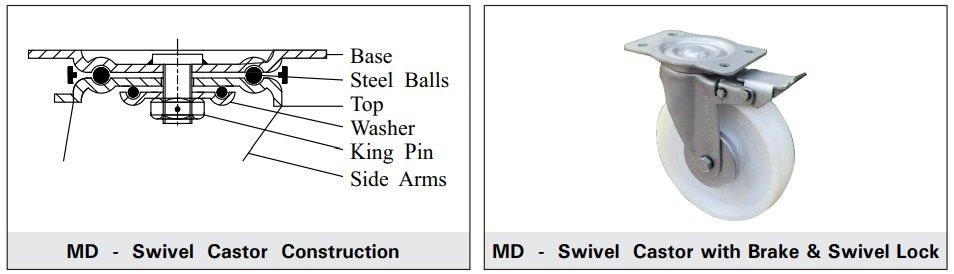

Medium Duty Swivel Brackets are manufactured from tested m. s. plates, cutting & forming on hydraulic press with emboss for high strength. Base, top & washer are assembled together with threaded king pin & steel balls between them.

Protective dust preventive ring is provided around steel balls.















MEDIUM DUTY PRESSED STEEL CASTORS ( MD SERIES )



No	Castor Size Wheel D x W mm	Height H mm	Offset O	Mounting Plate			Load Carrying Capacity Kg
				A x B mm	a x b mm	d	UHMW	PU-CI	CI	MS-TR
1	FX - MD - 50 x 25	70	0	90 x 80	60 x 40	10	60	60	60	60
2	SW - MD - 50 x 25	70	35	90 x 80	60 x 40	10	60	60	60	60
3	FX - MD - 63 x 25	85	0	90 x 80	60 x 40	10	80	80	80	80
4	SW - MD - 63 x 25	85	35	90 x 80	60 x 40	10	80	80	80	80
5	FX - MD - 75 x 25	100	0	90 x 80	60 x 40	10	100	100	100	100
6	SW - MD - 75 x 25	100	35	90 x 80	60 x 40	10	100	100	100	100
7	FX - MD - 75 x 32	105	0	110 x 90	80 x 50	10	120	120	120	120
8	SW - MD - 75 x 32	105	40	110 x 90	80 x 50	10	120	120	120	120
9	FX - MD - 100 x 32	130	0	110 x 90	80 x 50	10	150	150	150	150
10	SW - MD - 100 x 32	130	40	110 x 90	80 x 50	10	150	150	150	150
11	FX - MD - 125 x 32	155	0	110 x 90	80 x 50	10	200	200	200	200
12	SW - MD - 125 x 32	155	40	110 x 90	80 x 50	10	200	200	200	200
13	FX - MD - 100 x 40	140	0	130 x 100	100 x 50	12	200	200	200	200
14	SW - MD - 100 x 40	140	50	130 x 100	100 x 50	12	200	200	200	200
15	FX - MD - 125 x 40	165	0	130 x 100	100 x 50	12	250	250	250	250
16	SW - MD - 125 x 40	165	50	130 x 100	100 x 50	12	250	250	250	250
17	FX - MD - 150 x 40	185	0	130 x 100	100 x 50	12	300	300	300	300
18	SW - MD - 150 x 40	185	50	130 x 100	100 x 50	12	300	300	300	300
19	FX - MD - 200 x 40	235	0	130 x 100	100 x 50	12	350	350	350	350
20	SW - MD - 200 x 40	235	50	130 x 100	100 x 50	12	350	350	350	350
21	FX - MD - 100 x 50	140	0	160 x 120	120 x 60	12	300	300	300	300
22	SW - MD - 100 x 50	140	50	160 x 120	120 x 60	12	300	300	300	300
23	FX - MD - 125 x 50	165	0	160 x 120	120 x 60	12	350	350	350	350
24	SW - MD - 125 x 50	165	50	160 x 120	120 x 60	12	350	350	350	350
25	FX - MD - 150 x 50	185	0	160 x 120	120 x 60	12	400	400	400	400
26	SW - MD - 150 x 50	185	50	160 x 120	120 x 60	12	400	400	400	400
27	FX - MD - 200 x 50	235	0	160 x 120	120 x 60	12	500	500	500	500
28	SW - MD - 200 x 50	235	50	160 x 120	120 x 60	12	500	500	500	500
