POLYURETHANE WHEELS WITH CAST IRON CORE - ( PU - CI WHEEL )




PU - CI Wheel
PU - CI Wheel with Ball Bearings ( BB )


Pushing and Pulling efforts required for wheels with ball bearings is @ 50 % less than for wheels with plain bore. About 70 % of industries are using wheels with ball bearings.



1.
These wheels are manufactured by casting process where Polyurethane is Bonded / Moulded over Cast Iron core to form PU - CI Wheel



2.
These wheels have unique features like,



  • High load carring capacity
  • High impact strength
  • Low rolling & starting friction
  • Avoid damages to floor
  • Hardness - @ 95 Shore A
  • Excellent wear resistance
  • High cut to tear ratio
  • High resistance to oil, greace, chemicals
  • Maximum Working Temperature - 700 C



3.
These wheels are widely used in variety of material handling equipments like Pallet Trucks, Stackers, Drum Tilters, Floor Cranes, Battery operated material handling equipments & trolleys.

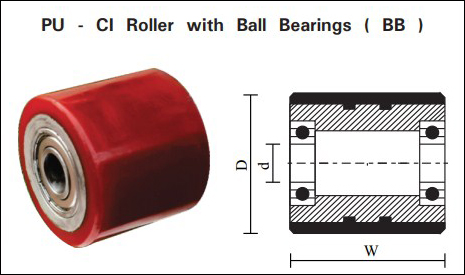

PU - CI Rollers
Roller Size
D x W mm		 Bore ID
d mm		 Bearing Number Load Cap Kg
80 x 70 20 6204 500
80 x 85 20 6204 550
80 x 90 20 6204 550
80 x 96 20 6204 600
80 x 100 20 6204 600
UHMW Wheel

HEAVY & THICKER SECTIONS ARE USED FOR BETTER STABILITY, SAFETY & LIFE

POLYURETHANE WHEELS WITH CAST IRON CORE - ( PU - CI WHEEL )

No. Description Wheel Size D x W mm Boss Width B mm Bore - ID d mm Bearing Number Load Cap Kg
1 PU - CI - WHEEL - 50 x 25 x 12 - BB 50 x 25 30 12 6001 60
2 PU - CI - WHEEL - 63 x 25 x 12 - BB 63 x 25 30 12 6001 80
3 PU - CI - WHEEL - 75 x 25 x 12 - BB 75 x 25 30 12 6001 100
4 PU - CI - WHEEL - 75 x 32 x 15 - BB 75 x 32 40 15 6202 150
5 PU - CI - WHEEL - 100 x 32 x 15 - BB 100 x 32 40 15 6202 200
6 PU - CI - WHEEL - 125 x 32 x 15 - BB 125 x 32 40 15 6202 250
7 PU - CI - WHEEL - 100 x 40 x 20 - BB 100 x 40 50 20 6004 250
8 PU - CI - WHEEL - 125 x 40 x 20 - BB 125 x 40 50 20 6004 300
9 PU - CI - WHEEL - 150 x 40 x 20 - BB 150 x 40 50 20 6004 350
10 PU - CI - WHEEL - 200 x 40 x 20 - BB 200 x 40 50 20 6004 400
11 PU - CI - WHEEL - 100 x 50 x 25 - BB 100 x 50 60 25 6205 300
12 PU - CI - WHEEL - 125 x 50 x 25 - BB 125 x 50 60 25 6205 400
13 PU - CI - WHEEL - 150 x 50 x 25 - BB 150 x 50 60 25 6205 500
14 PU - CI - WHEEL - 200 x 50 x 25 - BB 200 x 50 60 25 6205 600
15 PU - CI - WHEEL - 250 x 50 x 25 - BB 250 x 50 60 25 6205 900
16 PU - CI - WHEEL - 300 x 50 x 25 - BB 300 x 50 60 25 6205 1000
17 PU - CI - WHEEL - 150 x 75 x 25 - BB 150 x 75 90 25 6205 900
18 PU - CI - WHEEL - 200 x 75 x 25 - BB 200 x 75 90 25 6205 1100
19 PU - CI - WHEEL - 250 x 75 x 25 - BB 250 x 75 90 25 6205 1300
20 PU - CI - WHEEL - 300 x 75 x 25 - BB 300 x 75 90 25 6205 1500
21 PU - CI - WHEEL - 180 x 50 x 20 - BB 180 x 50 60 20 6204 500



SCIENTIFICALLY DESIGNED WHEELS WITH INBUILT QUALITY & SAFETY
